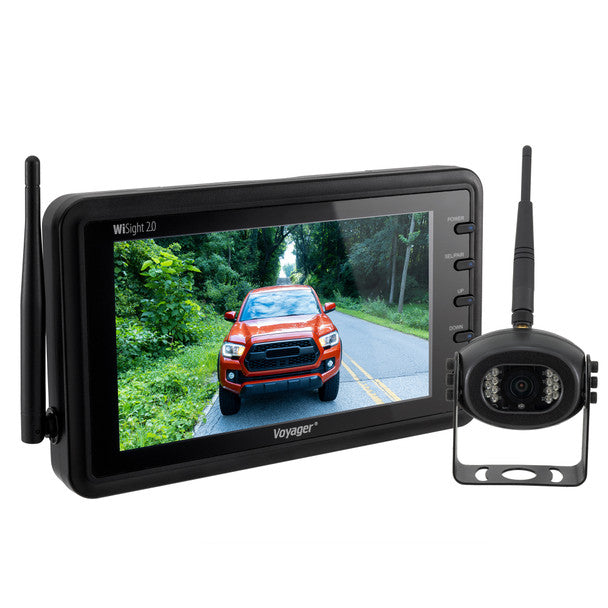

Voyager RV Wireless Backup Camera with 7" Monitor DIY System
The large and bulky size of rigs like these can make it difficult to see what is around you when maneuvering into your camping spot or traveling on the road. Low visibility of your surroundings can make traveling in a rig such as an RV feel dangerous and anxiety-inducing. The Voyager Wireless WiSight 2.0 7" Monitor and Camera is an easy way to get the improved visibility you need when traveling with a large rig such as an RV, trailer, or camper. This camera and monitor system from Voyager lets you effortlessly view what is next to you or behind you when maneuvering or driving your rig. The Voyager monitor and camera are only compatible with WiSight 2.0 products and will not work with first-generation WiSight products. Additionally, this kit is designed for non-prewired systems.

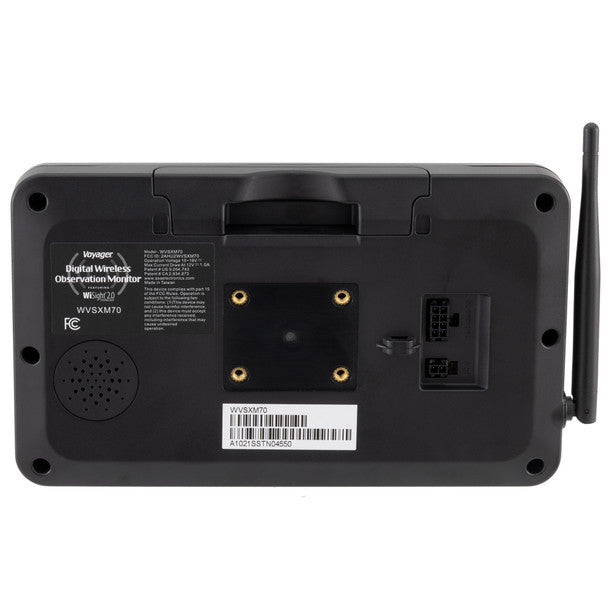

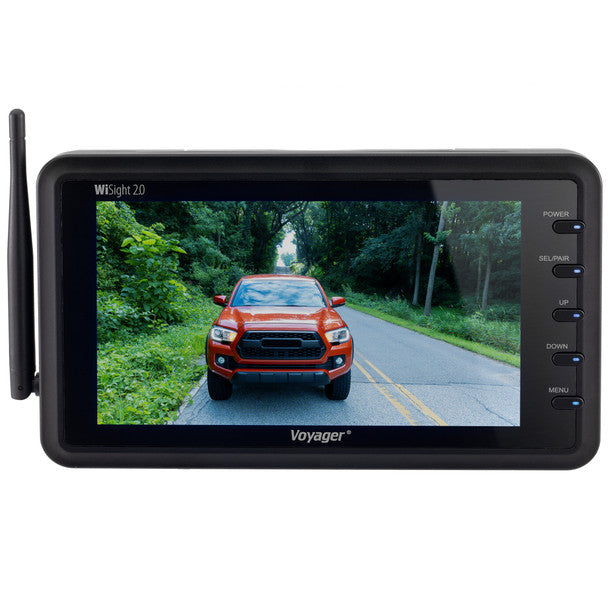

Monitor Details:
- Supports up to four wireless cameras
- Auto-pairing allows the monitor to pair with cameras with one button press
- Strong signal transmission up to 60' away
- 7" display with bright imaging
- Supports mirrored and normal camera image
- Supports single, split, and quad camera views
- Integrated speaker
- Easy to install

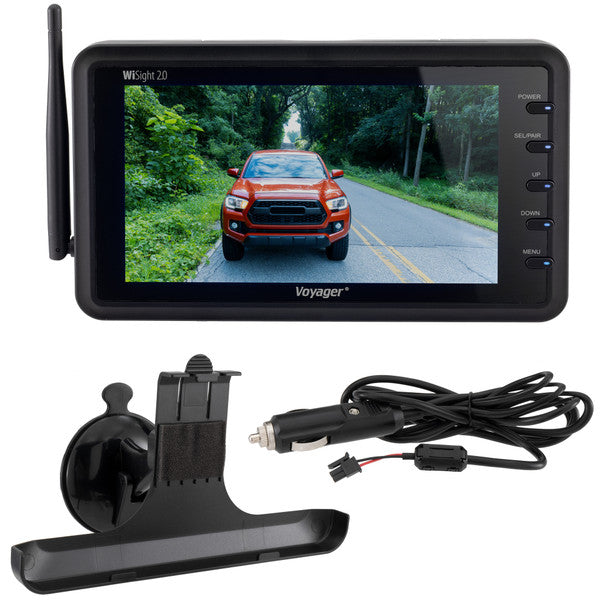

- Includes 7" display monitor, suction cup mount with clip, 12v DC power plug, mounting screws
Monitor Specs:
- Power System: 12VDC
- Operating Voltage Range: 10 ~ 16V
- Power Consumption (MAX): 675 mA
- Operating Temperature Range: -4F to 149F
- Storage Temperature Range: -22F to 158F
- Operating Relative Humidity: 95%

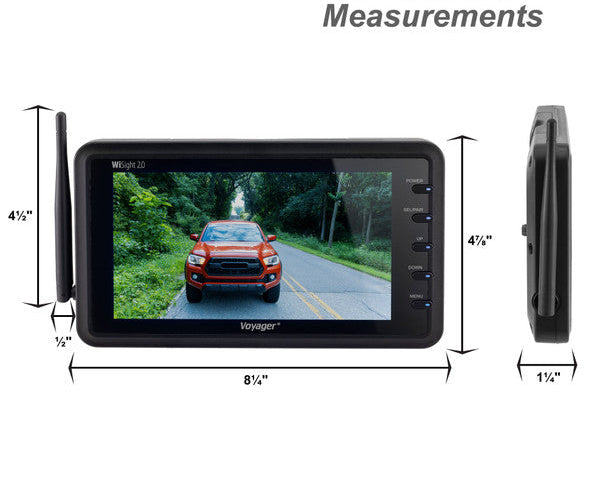

- Overall Dimensions: 1.06" x 4.88" x 8.19"
- Product Weight (unpackaged): 18.4 oz
- Video Output Signal Format: NTSC
- Video Signal Level: 1.0V p-p ; 75Ω
- Audio: 1.0 watt
- Resolution: 800 x 480
- View Angles: 70°(H) 70°(V)
- Brightness: 400 nit
- Contrast Ratio: 500:1
- Response Time: 30ms(R) 40ms(F)
- Display Format: 16:9

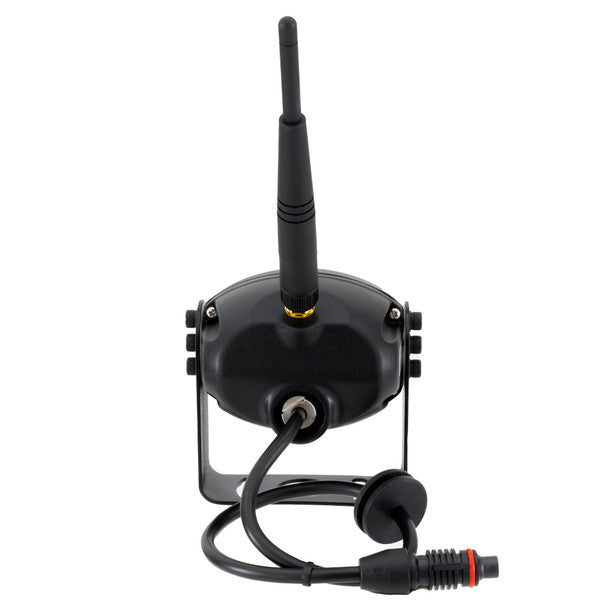

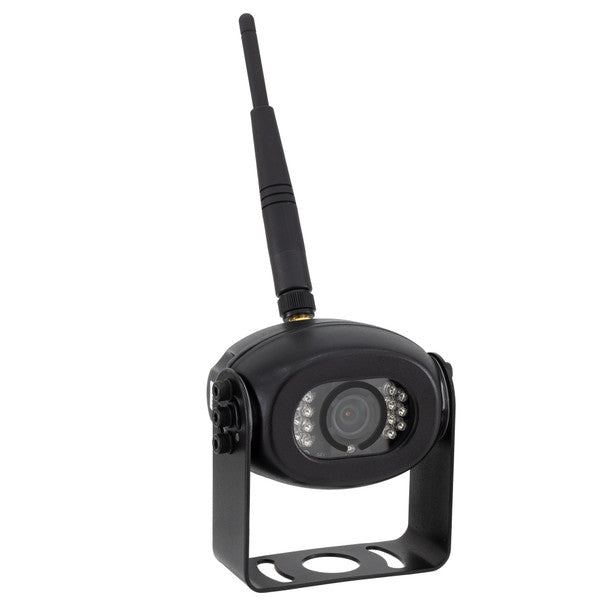

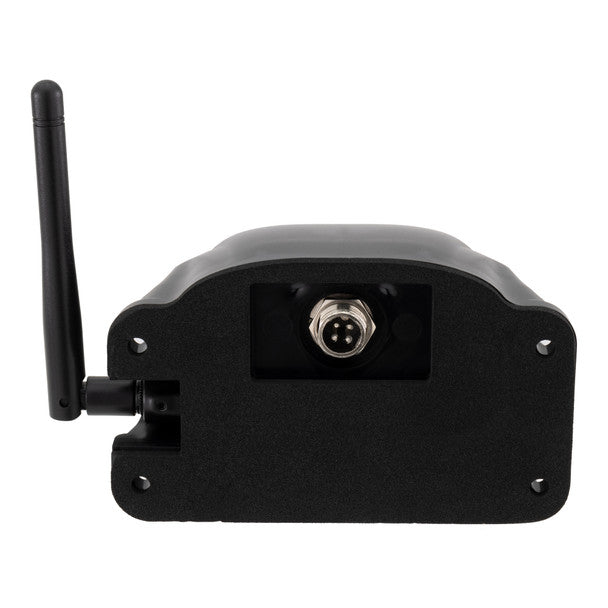

Camera Details:
- Compatible with WiSight 2.0 monitors
- High-performance color optics
- CMOS sensor technology
- IR LED Low-Light Assist
- Built-in microphone
- Wide viewing angle
- Water resistant
- 12v DC powered

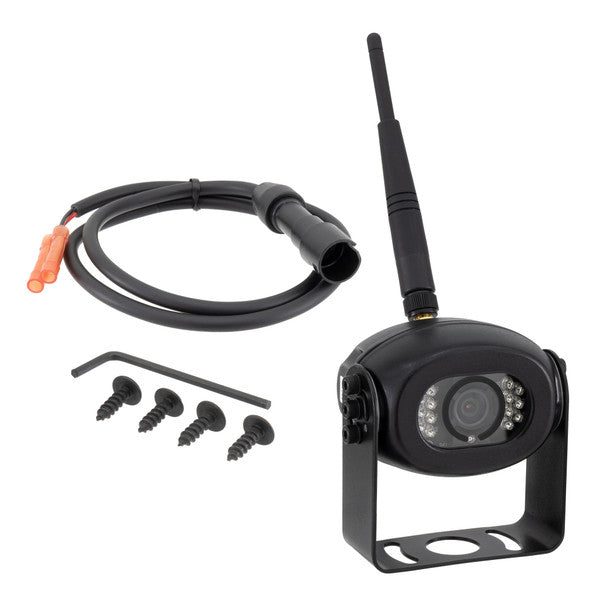

- Includes Voyager WiSight 2.0 Camera, mounting screws, allen wrench, and pigtail wire adapter
Camera Specs:
- Power System: 12VDC
- Operating Voltage Range: 10 ~ 18V, Supports GM PWM
- Power Consumption (MAX): 230 mA
- Operating Temperature Range: -20°C to 65°C
- Storage Temperature Range: -30°C to 85°C
- Operating Relative Humidity: 100%
- Water Resistance Rating: IPX6
- Overall Dimensions: 5.52" x 3" x 2.82"
- Product Weight (unpackaged): 10.56 oz
- Video Output Signal Format: NTSC
- Video Signal Level: 1.0V p-p ; 75Ω
- Audio: Microphone
- Sensor: 1/3" CMOS
- Sensitivity: 0 Lux
- Image Orientation: Mirror (Reversed)
- Resolution: 1.3MP ( 960p HD)
- View Angles: 135°(D) 102°(H) 72°(V)
*Only compatible with WiSight 2.0 products. Not compatible with first-generation WiSight products.*
Kit contains one monitor and one camera. Additional cameras are sold separately.
