Dexter® Electric/Hydraulic Disc Brake Actuator for Trailers 1600 PSI

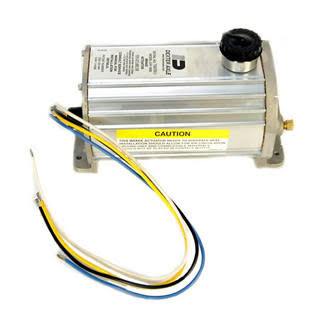

Dexter Electric/Hydraulic Brake Actuator for Disc Brake Applications 1,600 psi suitable for disc brake applications. Large reservoir capacity Solid state electronics. Part # K71-651. Alternate part #'s K71-651-00, 7010005.
Requires a 4-wire hookup
Wiring connections:
Yellow: cold side of breakaway switch; the wire that goes hot when a break occurs
Black: positive connection on breakaway switch; the wire that charges the breakaway battery
Blue: output from in-cab controller; the wire that provides power from your brake controller
White: ground Requires a minimum 9 amp/hour breakaway kit
• Dimensions: 11" long x 6" wide x 7" tall (bottom flange to top of cap)
• Compatible with most electronic brake controllers
• Meets or exceeds all Department of Transportation (DOT) regulations and federal braking requirements
•Works with Ford and Dodge factory brake controllers ?Not compatible with Chevrolet factory brake controllers
• 2 Year limited warranty
• The yellow wire must be attached to the breakaway unit for it to function when a breakaway occurs
Details
| Brake Type | Electric/Hydraulic Actuator |
|---|---|
| Brake Control Type | Proportional |
| Brake Actuator PSI | 1600 |
| Brake Actuator Application Type | Disc Brakes |
| Mounting Bolt Size | 1/4" |
| Volts | 12 |
| Brake Controller Mounting | Mount with Four (4) 1/4" Screws |
| Actuator Attachment Position | 2-1/2" x 9-13/16" Mounting |
Shipping Info
| Package Weight | 13 lbs. |
|---|
