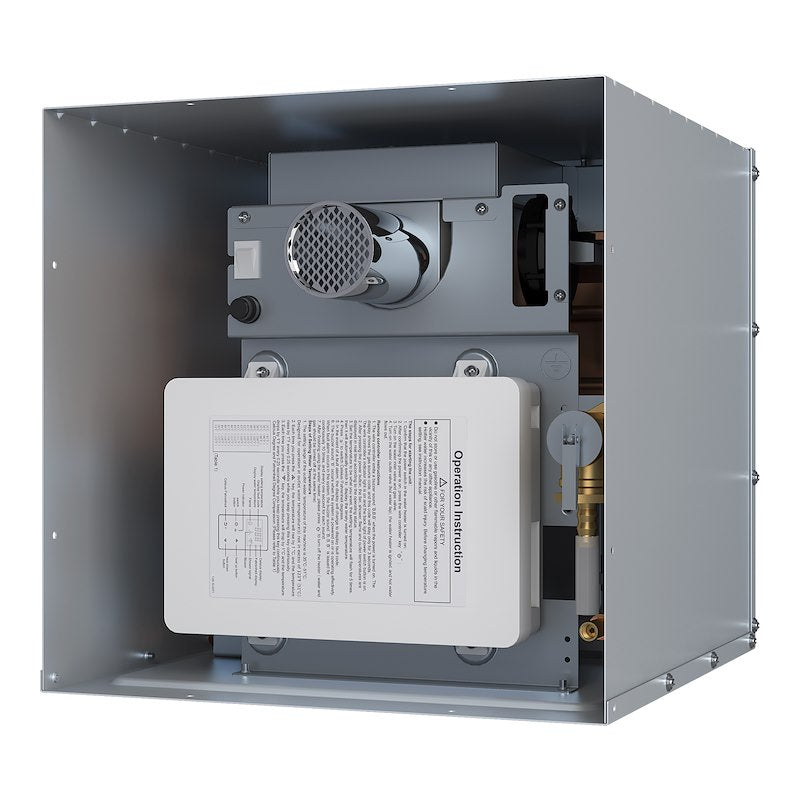

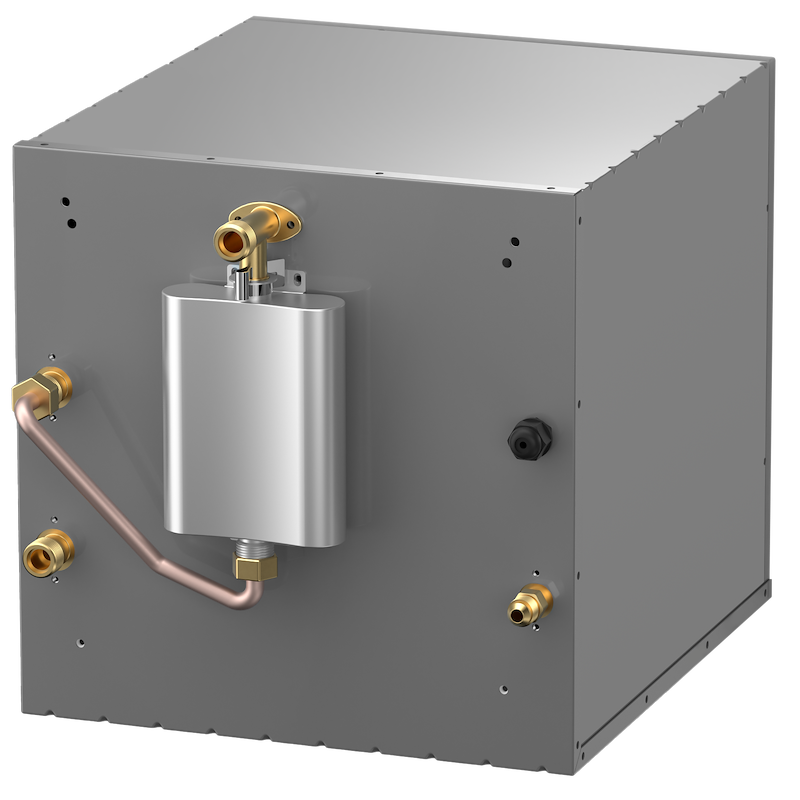

Fogatti Water Heater; InstaShower 8 PRO Model FS08B1SA, LP, On Demand, Tankless Model FS08B1S - INSTASHOWER 8 PRO

The water heater is designed with intelligent control system. Simply set the temperature and press the start button for machine detecting the qualify water flow. After ignition, the gas valve invites propane to ignite the burner, then runs steady hot water. The intelligent device detects the entire process, where may shut down gas whenever abnormal failures detected. The water heater is forced exhaust structured. The outside air passing through the air intake grille enters the combustion chamber via anti-dust net. Flue gas or air mixture is discharged outdoor through the small-diameter pipe automatically and safely.

 With Stage Combustion;

Non Portable; With Wired Digital Controller; Without Access Door

Rough Opening Dimensions: 13" x 13"

Weight:  25 lbs.

Conversion Access Door Kit May Be Needed When Replacing Older Atwood, Dometic or Suburban Water Heaters Due To Dimension Differences

Order Separately:  Water Heater Access Door & Water Heater Access Door Frame

• Constant Temperature System: Microcomputer Control System, Which Constitutes The 'computer" Of The Whole Machine, Which Controls The Water, Electricity Of The Water Heater In A Coordinated Manner
• Features Mixing Tank
• Low Startup Water Pressure Making It Easier To Use
• Flameout Protection: When Water Heater Accidently Flames Out During Operation, The Gas Supply Will Be Automatically Cut Off To Ensure No Leakage
• When A Blockage Of The Flue Or The Smoke Is Blocked, The Built-In Microcomputer System Will Increase The Operating Speed Of The Fan And Eliminate The Generation Of Harmful Gases
• When The Water Supply Is Interrupted Or The Water Outlet Valve Is Closed, The Water Heater Will Automatically Stop The Combustion And Shut Down
• Intelligent Microcomputer Can Monitor Various Safety Devices, Gas Proportional Valves And Other Components At Real-Time, Find Faults And Timely Safety Shutdown
• Advanced Fault Code Display Function Makes It Easy To Use And Maintain
• Easy To Install
• Capacity: Without Tank
• 2.9 Gallon Per Minute (GPM)
• Type: LP Gas
• Model: FS08B1SA
• Ignition Type: Automatic Pulse Electronic Ignition
• Stage Combustion
• Wattage Rating: Not Applicable
• BTU Level: 55000 BTU
• 12 Volt DC
• Width: 15 Inch
• Height: 15 Inch
• Depth: 15-1/2 Inch
• With Insulation: No
• With Switch: Yes
• With Access Door: No
• With Indicator Light: No
• With Mounting Hardware: Yes
• Limited 2 Year Warranty
