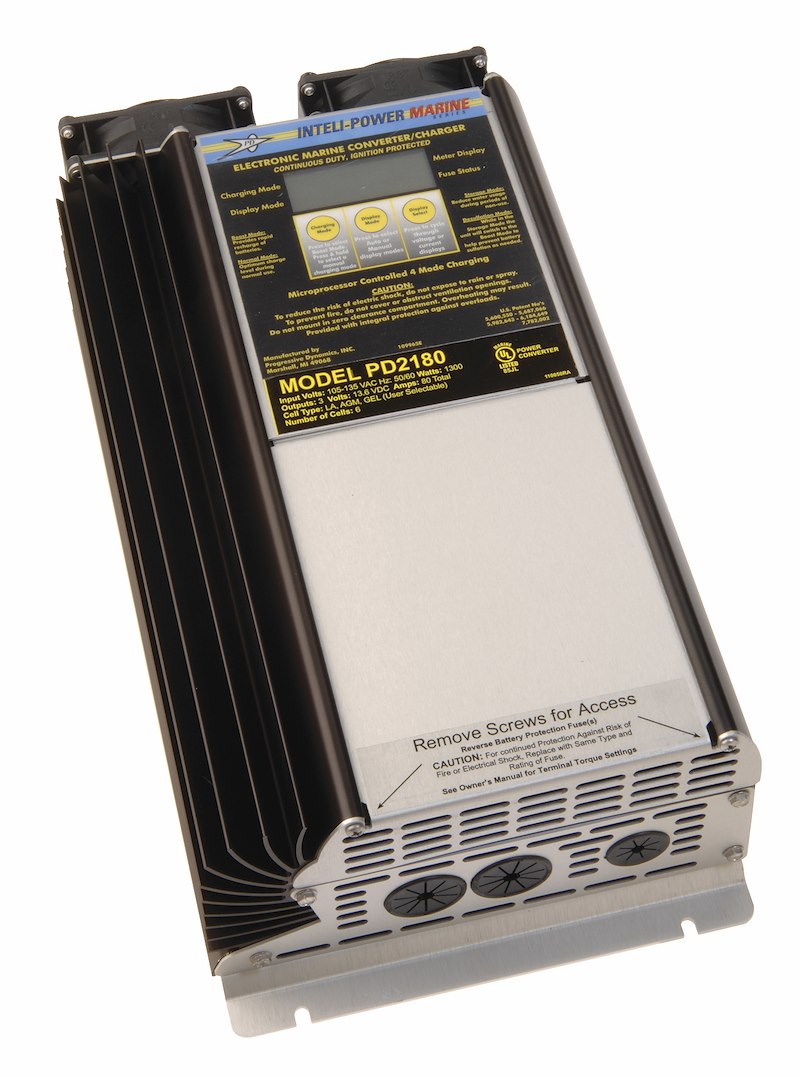

Progressive Dynamics PD2180V Power Converter; Inteli-Power ® 2100 Series; Converts 105 To 130 Volt AC To 13.9 Volt DC
Microprocessor-controlled four stage charging system provides rapid recharge and long battery life. The Inteli-Power Four-Stage Charging System – Provides optimum charging voltage at all times during the recharge cycle. Battery voltage is constantly monitored by the microprocessor, which automatically selects one of four operating modes: Boost Mode – Selected whenever the battery voltage is very low. Boost Mode provides a higher charging voltage to rapidly bring the battery up to 90 Percent of full charge. The digital display will read BOOST when the charger is in this mode. Normal Mode – Automatically selected once the battery reaches the 90 Percent charged level. This lower voltage safely completes the charge and remains in this mode as long as the 12 Volt systems in the boat are being operated. The digital display will read NORMAL in this mode. Storage Mode – Activated automatically when the 12 Volt systems are turned off and the battery has been fully charged for a period of 30 hours. The digital display will read STORAGE when in this mode. Equalize Mode – Helps prevents battery stratification and power-robbing sulfation. When in the Storage Mode, the microprocessor automatically equalizes the battery by increasing the voltage from 13.2 Volts to 14.4 Volts for approximately 15 minutes every 21 hours. This remixes the electrolyte mixture of water and sulfuric acid.
Features & Benefits
- Four-Stage Charging System: Microprocessor Constantly Monitors Battery Voltage And Automatically Selects One Of The Four Charging Modes: Boost, Normal, Storage Or Equalize
- 3 Diode Isolated Outputs: Allows The Converter Or Charger To Charge Three Separate Banks Of Batteries
- Reverse Battery Protection: Prevents Converter Or Charger From Being Damaged If The Batteries Are Accidentally Connected To The Charger In Reverse
- Over And Under Voltage Protection: Prevents High Voltage Spikes And Brownouts From Damaging The Converter Or Charger
- Electronic Current Limiting: Limits The Output Current To The Maximum Rating Of The Charger To Prevent Over Heating And Damage Caused By Shorts Or Excessive Loads
- Variable Speed Intelligent Cooling Fan: Only Runs As Fast As Required To Maintain A More Constant Operating Temperature Inside The Converter Or Charger
- Programmable In The Field: PD2100 Series Inteli-Power Converter Or Chargers Are Programmable In The Field To Provide Optimum Charging Profiles For Lead-Acid, Gel-Cell Or AGM Batteries
- Automatic Thermal Protection: Reduces Converter Output To Safe Levels When Unit Temperature Exceeds Pre-Set Limits And Protects Converter From Damage Due To Excessive Heat
- Series Or Parallel Connection: Inteli-Power Converter Or Chargers Can Be Connected In Series To Provide A Combination 12/24 Volt System Or In Parallel To Provide More Current
- Limited 2 Year Warranty
Attributes
- Converts: 105-130 Volt AC To 13.9 Volt DC
- Continuous Output Power: 1300 Watt
- Ampere Rating: 80 Amp
- Number Of Outlets: 3
- Efficiency: 80 Percent
- Length: 15-1/4 Inch
- Width: 7-3/4 Inch
- Height: 4-1/4 Inch
- Remote On/Off Capable: No
- With USB Port: No
- With Volt/Watt Meter: Yes
- With Short Circuit: No
- With Reverse Battery Protection: Yes
- With Thermal Protection: Yes
- With Battery Cables: No
- With Built-In Charger: Yes
- With Fuse: Yes
